1980 Ludwig P-85 Strainer Losing Tension Last viewed: 8 minutes ago

Posts: 1461 Threads: 75

Hi Guys, i could use your trusty opinions on this one.My original P-85 strainer on my 1980 Black Beauty loosens off as i play and i have to tighten the tension control knob after about three songs.Has anyone had this problem?It`s been great until the last year or so and i`ve been playing it since 82`.I use the reef-knot on the string so i know the problem is not there and maybe i need to replace it with a P-86 in which the holes will line up-am i correct here?The situation is frustrating to say the least,any help and opinions are greatly appreciated and thanks in advance.

Wayne

Wayne

1967 Rogers Cleveland Champagne Sparkle
20,16,13,13.
1967/68 Rogers Dayton Champagne Sparkle
20,16,13,13.
1966 Rogers cob 7 Line Dynasonic Snare.
1967 Rogers "Humberto Morales" Timbales.
1980 Ludwig B/O badge 14x 6.5 Black Beauty Snare.
1980 Ludwig B/O badge Red Cortex
22,22,18,16,15,14,13.
1988 Sonor "Horst Link" HLD 590 14x8 Bronze Snare
Posted on 10 years ago
#1
Posts: 532 Threads: 29

Hi Wayne!

P86 have the same hole pattern, fits perfect on P85 holes.

Anyway, there are some ways to keep on position a regular P85...

Q: yours have the spring on it?

Regards!


Ludwig '67 Classic B.D.P.
Ludwig '79 Classic Pro-beat
C. A. F. '72 New Sonic "The Argentinean Ludwig"
A bunch of Ludwig snares..... + Dyna & P.Tone.
and always trying to recover some orphan drums!!
Posted on 10 years ago
#2
Posts: 1461 Threads: 75

Hi Heraldo, and thanks for the hole spacing info with the P86.I`ve never removed the strainer before so don`t understand the spring question,sorry.Where inside the strainer is this spring located and what does it have to do with my situation(broken spring?)Anyway... thanks for getting back Heraldo.

Wayne

1967 Rogers Cleveland Champagne Sparkle
20,16,13,13.
1967/68 Rogers Dayton Champagne Sparkle
20,16,13,13.
1966 Rogers cob 7 Line Dynasonic Snare.
1967 Rogers "Humberto Morales" Timbales.
1980 Ludwig B/O badge 14x 6.5 Black Beauty Snare.
1980 Ludwig B/O badge Red Cortex
22,22,18,16,15,14,13.
1988 Sonor "Horst Link" HLD 590 14x8 Bronze Snare
Posted on 10 years ago
#3
Posts: 532 Threads: 29

From Wayne Brown

Hi Heraldo, and thanks for the hole spacing info with the P86.I`ve never removed the strainer before so don`t understand the spring question,sorry.Where inside the strainer is this spring located and what does it have to do with my situation(broken spring?)Anyway... thanks for getting back Heraldo.Wayne

Sorry Wayne, my fault... I wasn't clear enough.

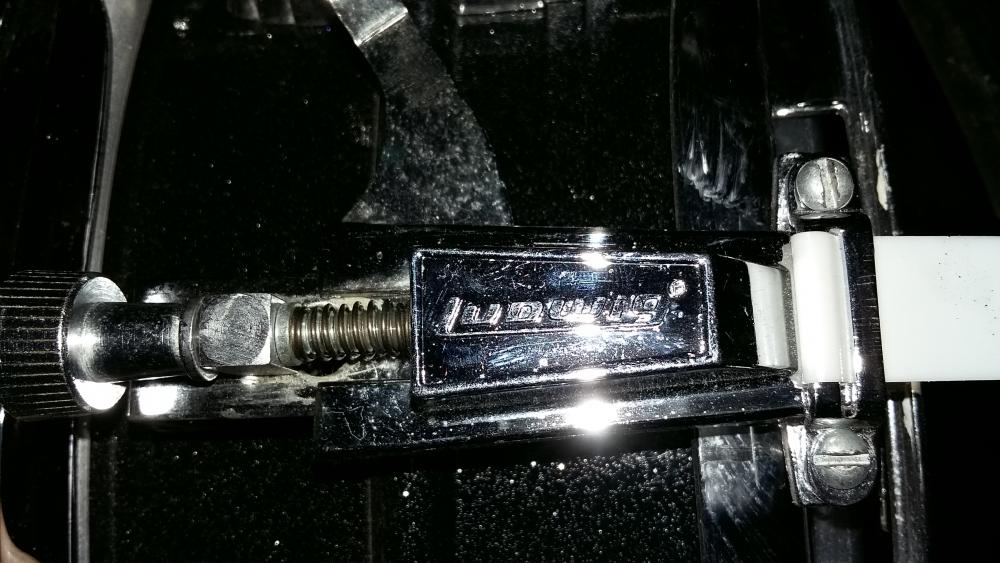

Here I attached a pic with a close look to the "external" P85 spring

-there's not springs within the mechanism -

Sometimes do not work properly, "pushing" permanently the front plate down.

Maybe you got a clue here....

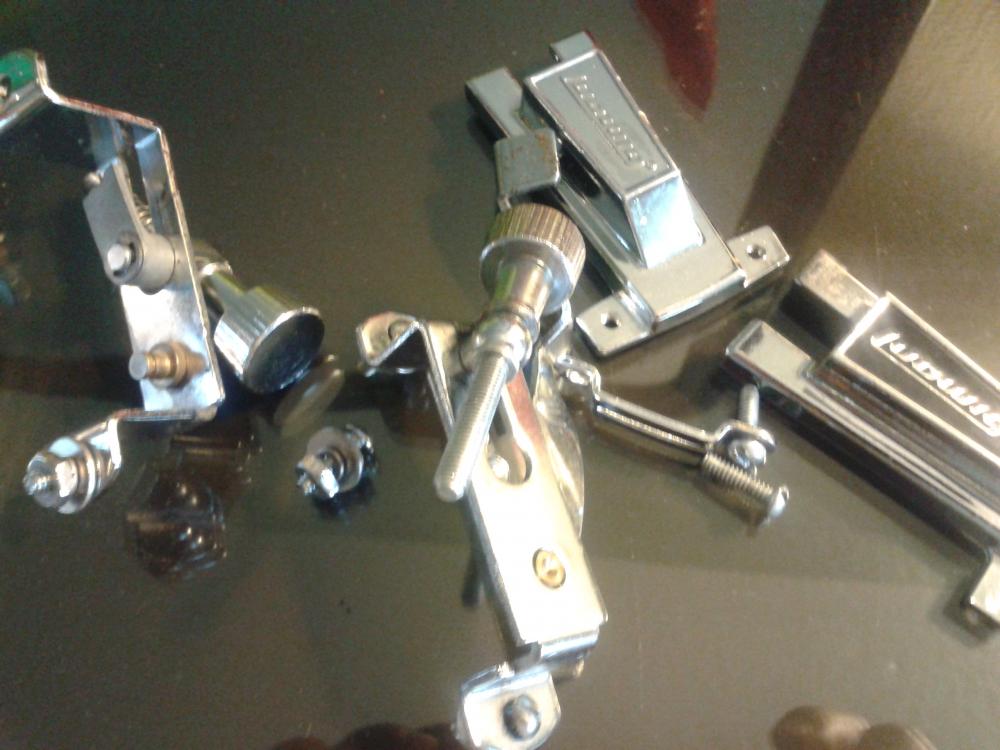

In any case, I'll suggest, to disassemble, check and clean the strainer. The P85 have no more than 10 pieces, you can prove the condition easily of each part.

Take your time, it's very easy -and fun, at least for me- LoLoLoLo

Hope it helps,

2 attachments
P 85 SPRING.jpg
94.6 kB
P 85 parts.jpg
77.9 kB

Ludwig '67 Classic B.D.P.
Ludwig '79 Classic Pro-beat
C. A. F. '72 New Sonic "The Argentinean Ludwig"
A bunch of Ludwig snares..... + Dyna & P.Tone.
and always trying to recover some orphan drums!!
Posted on 10 years ago
#4
Posts: 668 Threads: 39

Not all P85's have springs.

Posted on 10 years ago
#5
Posts: 532 Threads: 29

From jerrysterken

Not all P85's have springs.

Indeed! that's why I asked first

Regards!!


Ludwig '67 Classic B.D.P.
Ludwig '79 Classic Pro-beat
C. A. F. '72 New Sonic "The Argentinean Ludwig"
A bunch of Ludwig snares..... + Dyna & P.Tone.
and always trying to recover some orphan drums!!
Posted on 10 years ago
#6
Posts: 1461 Threads: 75

Heraldo,thanks for the pics and i agree i must disassemble-other than a possible spring,anything else i should be looking for ? I`d like to keep the original strainer working and on the drum if i possibly can.

Wayne

1967 Rogers Cleveland Champagne Sparkle
20,16,13,13.
1967/68 Rogers Dayton Champagne Sparkle
20,16,13,13.
1966 Rogers cob 7 Line Dynasonic Snare.
1967 Rogers "Humberto Morales" Timbales.
1980 Ludwig B/O badge 14x 6.5 Black Beauty Snare.
1980 Ludwig B/O badge Red Cortex
22,22,18,16,15,14,13.
1988 Sonor "Horst Link" HLD 590 14x8 Bronze Snare
Posted on 10 years ago
#7
Posts: 532 Threads: 29

From Wayne Brown

Heraldo,thanks for the pics and i agree i must disassemble-other than a possible spring,anything else i should be looking for ? I`d like to keep the original strainer working and on the drum if i possibly can.Wayne

Hard to tell at the distance ...but don't worry, once you disassemble, you'll probably find something "not proper"!!

Allow me to tell you that during late '70's, P85 had a kind of plastic nut just below the tension knob, and I guess it was there with that purpose (I don't have any pic right now) HFYI

The problem was the plastic were cracked -after some average use- 99% of the times!

I never tried this, but perhaps, if you find some brass/steel nut that could fit on the screw, maybe it could work as a "brake" of the loosen issue.

I dunno if I'm clear.... Good luck buddy!


Ludwig '67 Classic B.D.P.
Ludwig '79 Classic Pro-beat
C. A. F. '72 New Sonic "The Argentinean Ludwig"
A bunch of Ludwig snares..... + Dyna & P.Tone.
and always trying to recover some orphan drums!!
Posted on 10 years ago
#8
Posts: 532 Threads: 29

This is what I'm talking about!! ( I found it webbing)Jumping2

1 attachment
p85 with plastic nut.jpg
8.1 kB

Ludwig '67 Classic B.D.P.
Ludwig '79 Classic Pro-beat
C. A. F. '72 New Sonic "The Argentinean Ludwig"
A bunch of Ludwig snares..... + Dyna & P.Tone.
and always trying to recover some orphan drums!!
Posted on 10 years ago
#9
Posts: 1461 Threads: 75

Heraldo,you just may have solved my problem...that plastic nut/grommet you showed in the pic was split on mine and i`ve bought a similar plastic nut/grommet to replace it.I only own three snares and this is the one i use all the time.Thanks again Heraldo for your info and time,very much appreciated my friend.We`ll see if this is the solution?

Best,

Wayne

1967 Rogers Cleveland Champagne Sparkle
20,16,13,13.
1967/68 Rogers Dayton Champagne Sparkle
20,16,13,13.
1966 Rogers cob 7 Line Dynasonic Snare.
1967 Rogers "Humberto Morales" Timbales.
1980 Ludwig B/O badge 14x 6.5 Black Beauty Snare.
1980 Ludwig B/O badge Red Cortex
22,22,18,16,15,14,13.
1988 Sonor "Horst Link" HLD 590 14x8 Bronze Snare
Posted on 10 years ago
#10
