Ludwig 1123-1 hi hat clutch question Last viewed: 6 hours ago

Posts: 611 Threads: 33

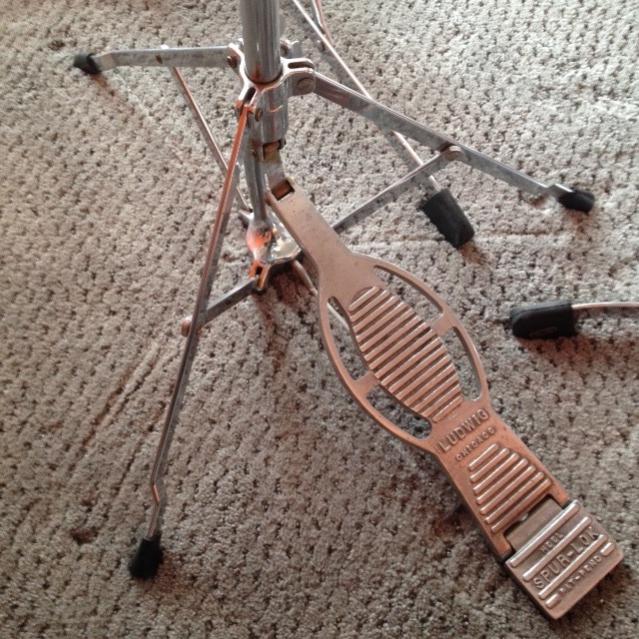

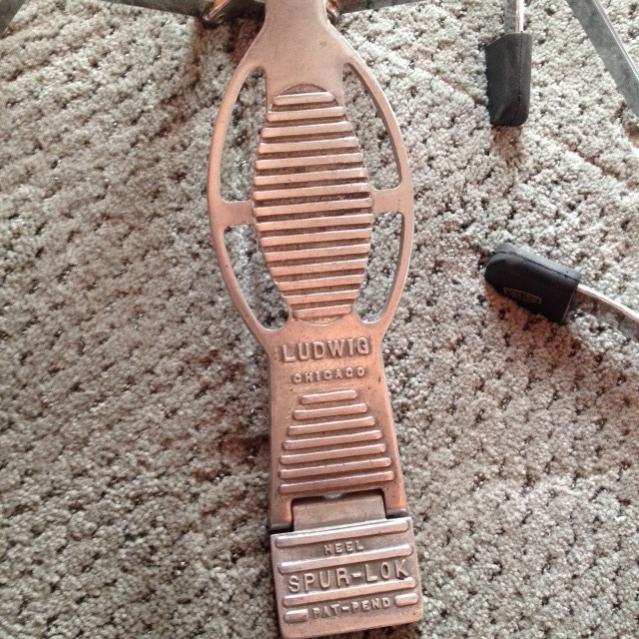

I am using the early Ludwig 1123-1 hi hat stand with the block logo on the footboard but want to get the correct clutch . What is the right one for this as I have seen a few different ones as I have been looking ?

2 attachments
91.3 kB
96.1 kB
Warning ... Avoid member statuscymbal here, vintage_collector on DFO , and americanpatriot10 on eBay. Email me for his name. All are the same shady guy who has burned me and a list of other members on both boards . He is also selling on Facebook too ..
Posted on 10 years ago
#1
Posts: 6170 Threads: 255

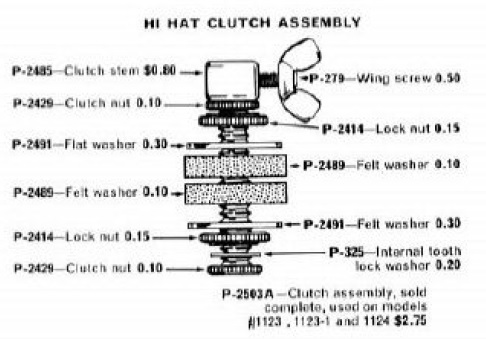

From the 67d parts catalog. This is the one that should be correct I think.

Mike

1 attachment
ludwig hi hat clutch.jpg
53.6 kB
Posted on 10 years ago
#2
Posts: 611 Threads: 33

Thanks Mike . Now to find one I hope that is not too impossible . BTW this stand is awesome after hot rodding it a bit with adding a stiffer spring .

Warning ... Avoid member statuscymbal here, vintage_collector on DFO , and americanpatriot10 on eBay. Email me for his name. All are the same shady guy who has burned me and a list of other members on both boards . He is also selling on Facebook too ..
Posted on 10 years ago
#3
Posts: 262 Threads: 52

From mlayton

From the 67d parts catalog. This is the one that should be correct I think.Mike

Thanks, I just learned something & I'm an old guy :D

I've used those clutches for years, think I have one in the shed & I did not know there was a P-325 Internal Tooth Lock Washer, I've never seen one.

Posted on 10 years ago
#4
Posts: 6170 Threads: 255

From frantic freddie

Thanks, I just learned something & I'm an old guy :DI've used those clutches for years, think I have one in the shed & I did not know there was a P-325 Internal Tooth Lock Washer, I've never seen one.

Its the same washer that's used behind the large brass retaining nut on the baseball bat mufflers. I've had several of these clutches and none ever had the washer when I got them.

Mike

Posted on 10 years ago
