Mounting 70s Slinger Toms Closer Last viewed: 7 minutes ago

Posts: 207 Threads: 104

Im sure this has come up before , but wondered if anyone knew a hardware piece that would allow an early 70s slingy set of 13" toms to be mounted closer together - on the bass drum without using a separate stand - wondered if something from another era slinger or another manufacture could be adapted/used to get my toms an inch or so apart instead of the 3-4 " they are now - thanks

Rogers Dayton 12/16/20 Blue Onyx
Gretsch RB 20/16/13/12 Green Glass Glitter
'69 Beverley Panorama 21 12/13/16/22 Rootbear Swirl
Snares:
1930s Sherman Clay and Co. Single Ply Birds Eye Maple
1949 WFL Contest Concert Model Duco
1955 Slingerland Student Radio King WMP
1965 Slingerland Hollywood Ace WMP
1968 Ludwig Acrolite
60s/70s A Zildjians
Posted on 10 years ago
#1
Posts: 2753 Threads: 132

From CanuckDrumGuy

Im sure this has come up before , but wondered if anyone knew a hardware piece that would allow an early 70s slingy set of 13" toms to be mounted closer together - on the bass drum without using a separate stand - wondered if something from another era slinger or another manufacture could be adapted/used to get my toms an inch or so apart instead of the 3-4 " they are now - thanks

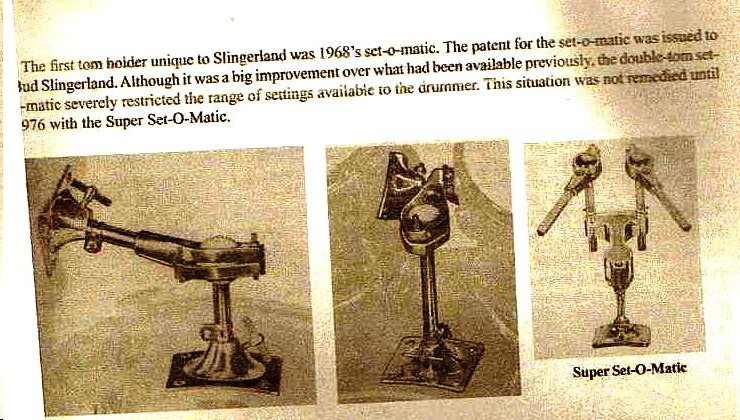

If I could see a picture of your tom mounting hardware, I could answer your question. If it's the double Set O Matic mount, that's a simple fix if you get a Super Set O Matic mount that goes in the same receiver on the bass drum. The Super Set O Matic has two separate arms that can be positioned to place your two toms as close together as you want them to be.

1 attachment
106.6 kB
No matter how far you push the envelope, it is still stationery.
Posted on 10 years ago
#2
Posts: 2197 Threads: 202

Super Set-o-Matic tom mount.

Posted on 10 years ago
#3
Posts: 207 Threads: 104

thanks all - I do have the double SOM with the two subs on them so super-set-o-matic is it - awesome!! thanks again

Rogers Dayton 12/16/20 Blue Onyx
Gretsch RB 20/16/13/12 Green Glass Glitter
'69 Beverley Panorama 21 12/13/16/22 Rootbear Swirl
Snares:
1930s Sherman Clay and Co. Single Ply Birds Eye Maple
1949 WFL Contest Concert Model Duco
1955 Slingerland Student Radio King WMP
1965 Slingerland Hollywood Ace WMP
1968 Ludwig Acrolite
60s/70s A Zildjians
Posted on 10 years ago
#4
Posts: 207 Threads: 104

any slingy super SOM's out there for sale????

Rogers Dayton 12/16/20 Blue Onyx
Gretsch RB 20/16/13/12 Green Glass Glitter
'69 Beverley Panorama 21 12/13/16/22 Rootbear Swirl
Snares:
1930s Sherman Clay and Co. Single Ply Birds Eye Maple
1949 WFL Contest Concert Model Duco
1955 Slingerland Student Radio King WMP
1965 Slingerland Hollywood Ace WMP
1968 Ludwig Acrolite
60s/70s A Zildjians
Posted on 10 years ago
#5
Posts: 3467 Threads: 116

Before you race out and buy a SSM... Where is your bass drum mount located on the BD.. For a comfortable location of the toms the mount should be mounted far forward on the BD towards the front hoop... not back towards the batter head, even centered can be a problem.. (Eg; you end up sitting so far back you can barely reach the pedal) ... Check out lots of images of the SSM mounted on various size kits..

Cheers

John

'77 Slingerland 51N,Super Rock 24,18,14,13.. COW 8,10 Concert toms
'69 Slingerland Hollywood Ace
'75 Rogers Dynasonic 6.5 x 14, 10 lug COB
'77-78 Slingerland 6.5 x 14, 10 lug COB
'78-79 Slingerland 5 1/4 x14 8 lug COB
'79 Biman 5 1/4, Acrolite
'82 Slingerland 5 1/4 x 14. Festival COS
'84 Tama MasterCraft Superstar 6.5 x 14, 10 lug Rosewood
'98 Slingerland (Music YO) 6" 10 Lug Maple.. NOS
Zildjian, Sabian , UFIP & Paiste mix.
Posted on 10 years ago
#6
Posts: 730 Threads: 61

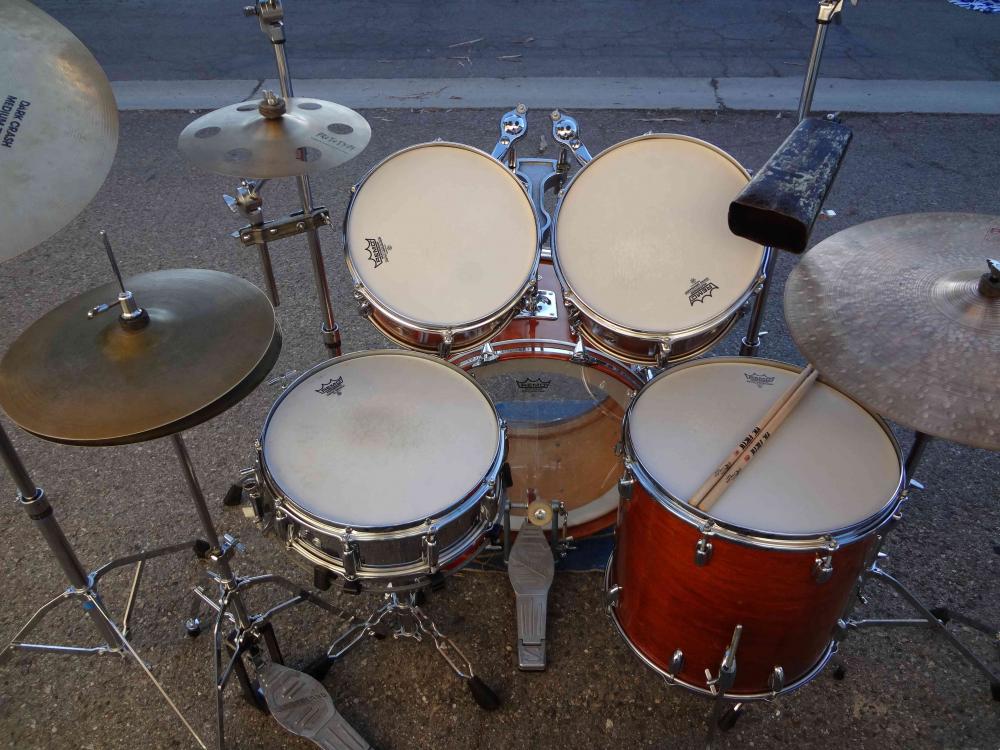

Longjohn is correct … here is one of my kits with a bass drum that was originally drilled for a regular S-O-M. It works for me because I like my toms at a fairly steep angle which makes up for them being in closer. But you'll see that the Super S-O-M mount WILL get the toms pretty close together.

They show up on eBay every now and then in the $75-$100 range.

Al

1 attachment
118.2 kB
9x Slingerland New Rock 50N 12-13-16-22 with 170 (Super S-O-M) holder
• 1979 Oak
• 1978 Blakrome + 6.5x14 TDR SD
• 1977 Black Diamond Pearl + 5x14 SD (gold badge, Rapid strainer)
• 1976 Black Cordova
• 1975 Silver Sparkle + 5x14 SD (Rapid strainer)
• 1974 Chrome + 5x14 COB TDR and 6.5x14 COW Zoomatic SDs
• 1973 Purple Sparkle
• 1973 Phantom (clear)
• 1971 Walnut (gold badges) + 5x14 TDR SD
1x Rogers Powertone Londoner V 12-13-16-22
• 1972 Butcher Block + 1979 big R Dynasonic SD
Posted on 10 years ago
#7
Posts: 1190 Threads: 86

I've never had an issue with the super setomatic being too close when center mounted. One thing I used to do when I used two mounted toms was use the stubby double arm as one of the single arms as it would set one tom a little further back.

Posted on 10 years ago
#8
Posts: 3467 Threads: 116

With the Super SM the size of the BD also comes into play.. The larger the BD the more difficult it is to get a good angle on the toms. Big difference between a 20 & a 26.. When they first released it, they were shipping it out with those kits that were fitted with centre mounted BD receivers. Later the position was moved forward to around an inch back from the front hoop. So most of the SSM kits that you see are drilled forward.

They don't come cheap, so I am just saying check it out first.. It never worked for me..

Cheers

John

'77 Slingerland 51N,Super Rock 24,18,14,13.. COW 8,10 Concert toms
'69 Slingerland Hollywood Ace
'75 Rogers Dynasonic 6.5 x 14, 10 lug COB
'77-78 Slingerland 6.5 x 14, 10 lug COB
'78-79 Slingerland 5 1/4 x14 8 lug COB
'79 Biman 5 1/4, Acrolite
'82 Slingerland 5 1/4 x 14. Festival COS
'84 Tama MasterCraft Superstar 6.5 x 14, 10 lug Rosewood
'98 Slingerland (Music YO) 6" 10 Lug Maple.. NOS
Zildjian, Sabian , UFIP & Paiste mix.
Posted on 10 years ago
#9
