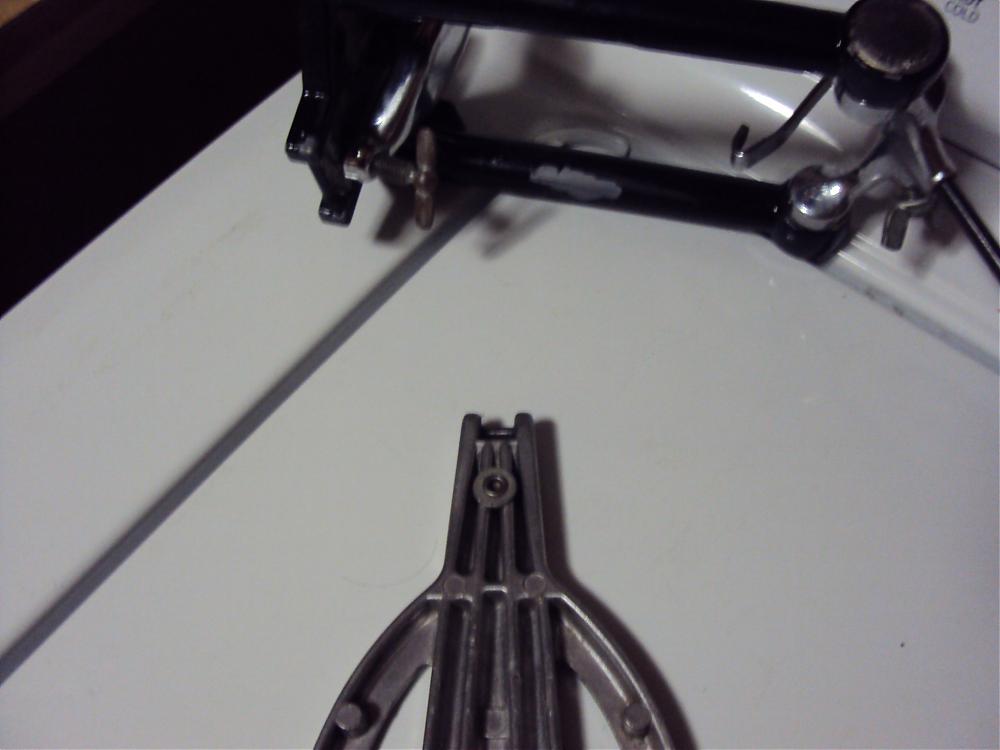

My last mystery, it involves a rivet on the top of the footboard, it goes through the cast footboard but holds onto nothing,....I was clean`n it and wondered why they would put a rivet into a hole that does nothing ?? It`s just a rivet in a hole !!
Only Admins can see this message.
Data Transition still in progress. Some functionality may be limited until the process is complete.
Speed King Q. Last viewed: 11 hours ago
Posts: 6524
Threads: 37
Loading...
It`s a drum,.....Hit It !!
.....76/#XK9207 Phonic Sound Machine D454/D-505 snares !i
.....76/#XK9207 Phonic Sound Machine D454/D-505 snares !i
Posted on 14 years ago
#1
Posts: 10714
Threads: 579
Loading...
it is there to hold the retaining clip in place .IF It wasn't there the pedal wouldn't be able to hold onto the footboard!
Your drummers not much good is he!? What you need is someone that's as good as me. ! John Henry Bonham !!
Posted on 14 years ago
#2
Posts: 6524
Threads: 37
Loading...

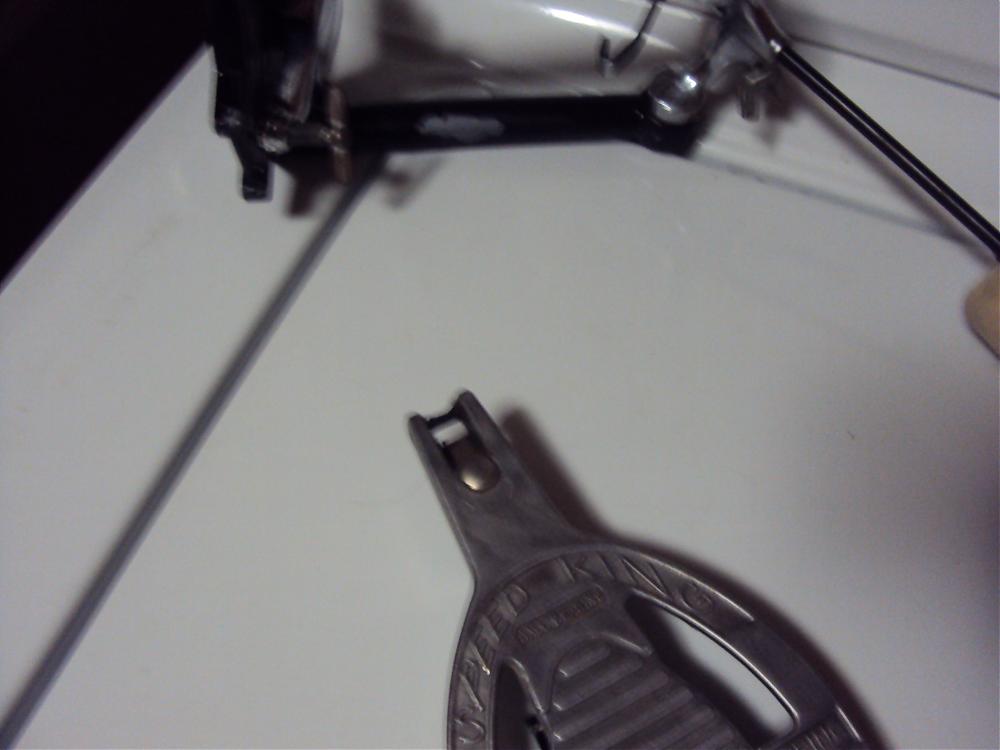

No, no ...not that one,...the big shiny one at the begin`n of the grove,...look at the bottom shot,..there is a cast hole it goes through. The hook don`t even touch that !!
It`s a drum,.....Hit It !!
.....76/#XK9207 Phonic Sound Machine D454/D-505 snares !i
.....76/#XK9207 Phonic Sound Machine D454/D-505 snares !i
Posted on 14 years ago
#3
Posts: 10714
Threads: 579
Loading...
No, no ...not that one,...the big shiny one at the begin`n of the grove,...look at the bottom shot,..there is a cast hole it goes through. The hook don`t even touch that !!
were talking about the same thing without it your pedal every up stroke the clip would disengage without it, and disconnect from the foot board, the three speed kings I'm showing the last two are like yours the first one is a very early speed king it doesn't have the rivet in it!
Your drummers not much good is he!? What you need is someone that's as good as me. ! John Henry Bonham !!
Posted on 14 years ago
#4
Posts: 4009
Threads: 209
Loading...
That rivet is supposed to be retaining a metal spring clip that is bent in such a way to apply pressure to the bottom edge of the footboard link when it is attached for playing mode. Your pedal seems to be missing that spring clip. The clip helps keep the link in place and not allow it to detach from the footboard while playing. Without it, you risk the link coming undone from the footboard. Unfotunately it is not a part that Ludwig sold as a service part. The only way you could get it from Ludwig was to purchase a footboard assembly.
Posted on 14 years ago
#5
Posts: 6524
Threads: 37
Loading...
You guys are amazeing,...Thank you,..this site is like priceless with guys like you two !! I`m glad I decided to join !!
It`s a drum,.....Hit It !!
.....76/#XK9207 Phonic Sound Machine D454/D-505 snares !i
.....76/#XK9207 Phonic Sound Machine D454/D-505 snares !i
Posted on 14 years ago
#6
Posts: 10714
Threads: 579
Your drummers not much good is he!? What you need is someone that's as good as me. ! John Henry Bonham !!
Posted on 14 years ago
#7
Posts: 6524
Threads: 37
Loading...
This is definitely the most proffessional drum forum on the net. !!
It`s a drum,.....Hit It !!
.....76/#XK9207 Phonic Sound Machine D454/D-505 snares !i
.....76/#XK9207 Phonic Sound Machine D454/D-505 snares !i
Posted on 14 years ago
#8
Posts: 6524
Threads: 37
Loading...
Vintagemore,
Mine has the same keys as the one in the photo that is in the middle, it also has the short cast face`n the drum,...Dose this date it, and are all the parts correct ?? If yo need more photos`, I can do that !!
It`s a drum,.....Hit It !!
.....76/#XK9207 Phonic Sound Machine D454/D-505 snares !i
.....76/#XK9207 Phonic Sound Machine D454/D-505 snares !i
Posted on 14 years ago
#9
Posts: 10714
Threads: 579
Loading...
Vintagemore, Mine has the same keys as the one in the photo that is in the middle, it also has the short cast face`n the drum,...Dose this date it, and are all the parts correct ?? If yo need more photos`, I can do that !!
If yours is like the middle Wfl speed king then it's middle 50's the last or 3rd wfl speed king is late 50's
