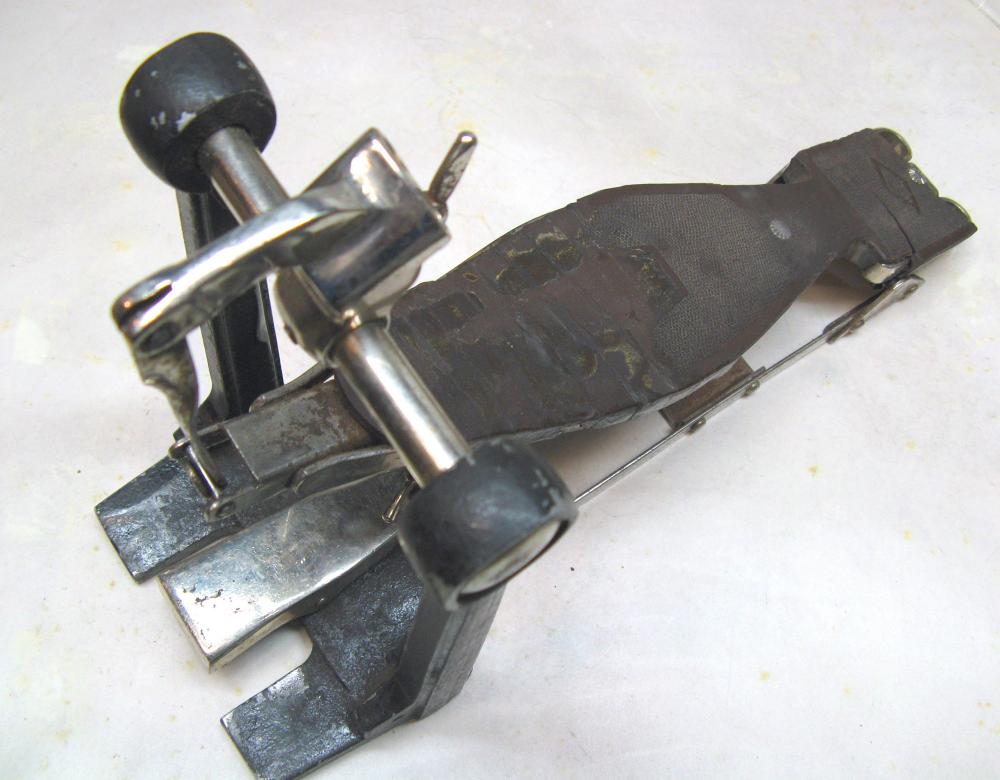

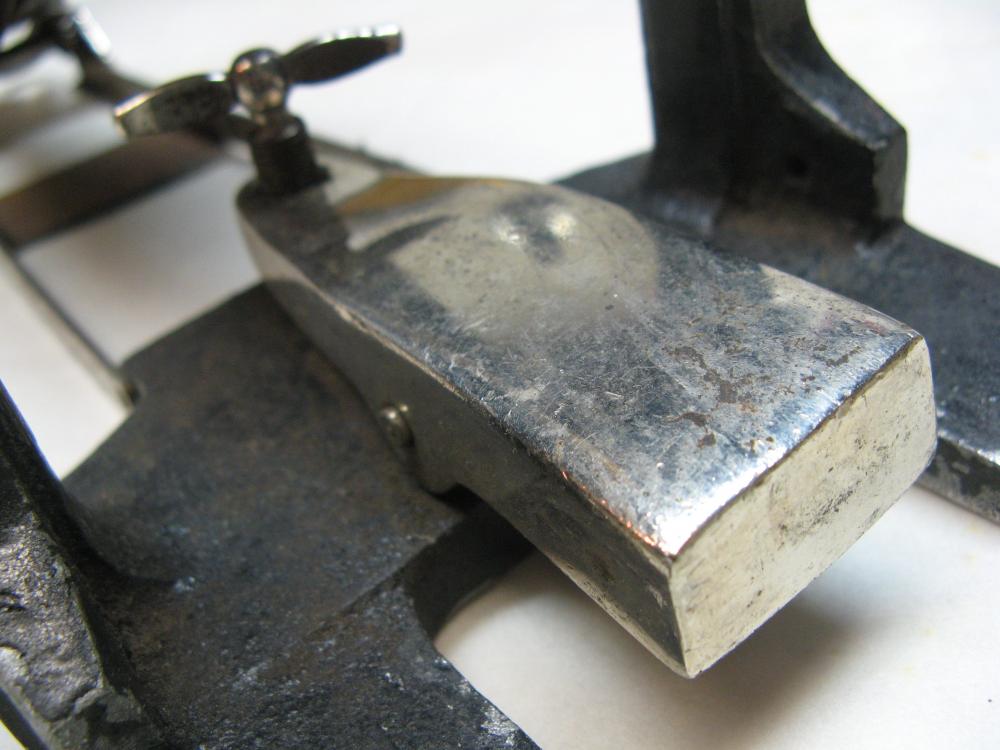

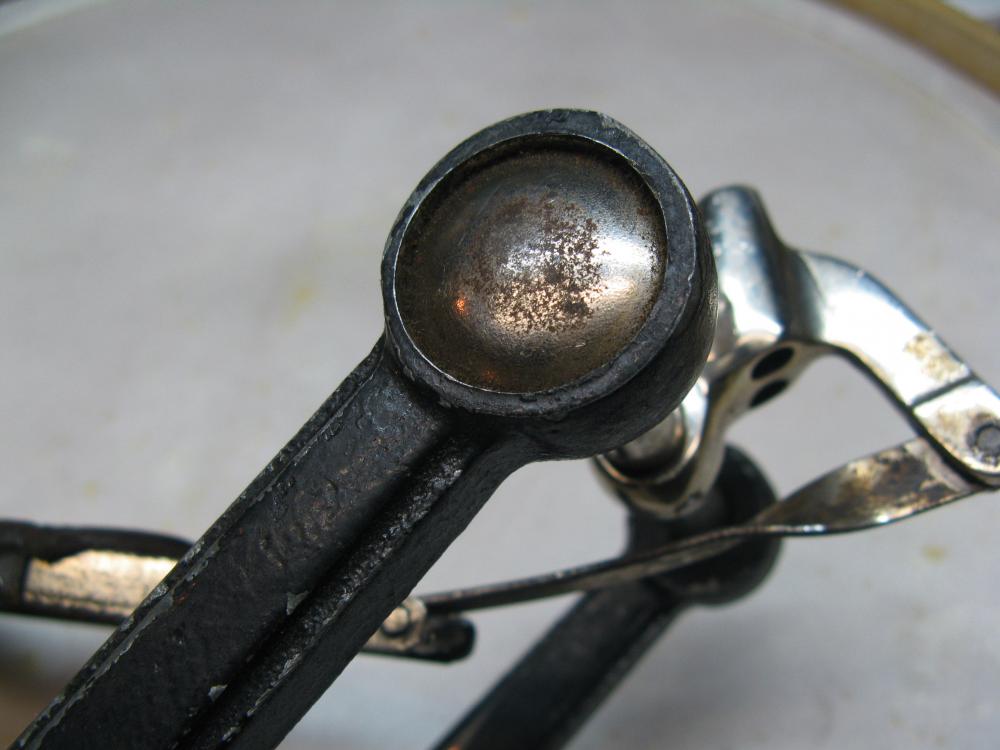

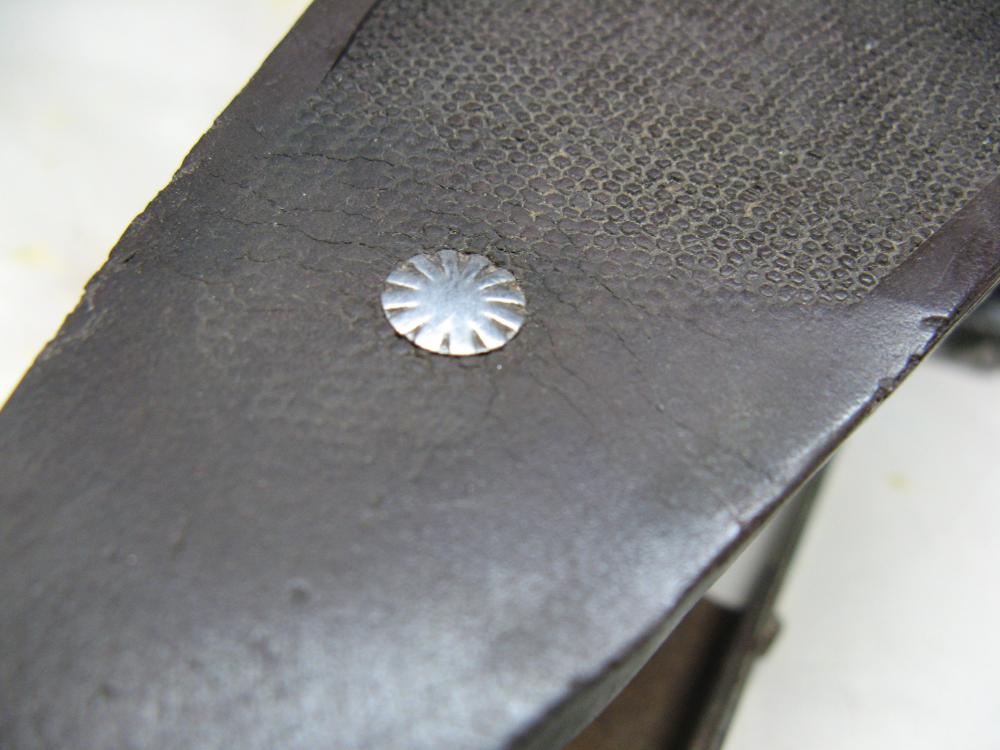

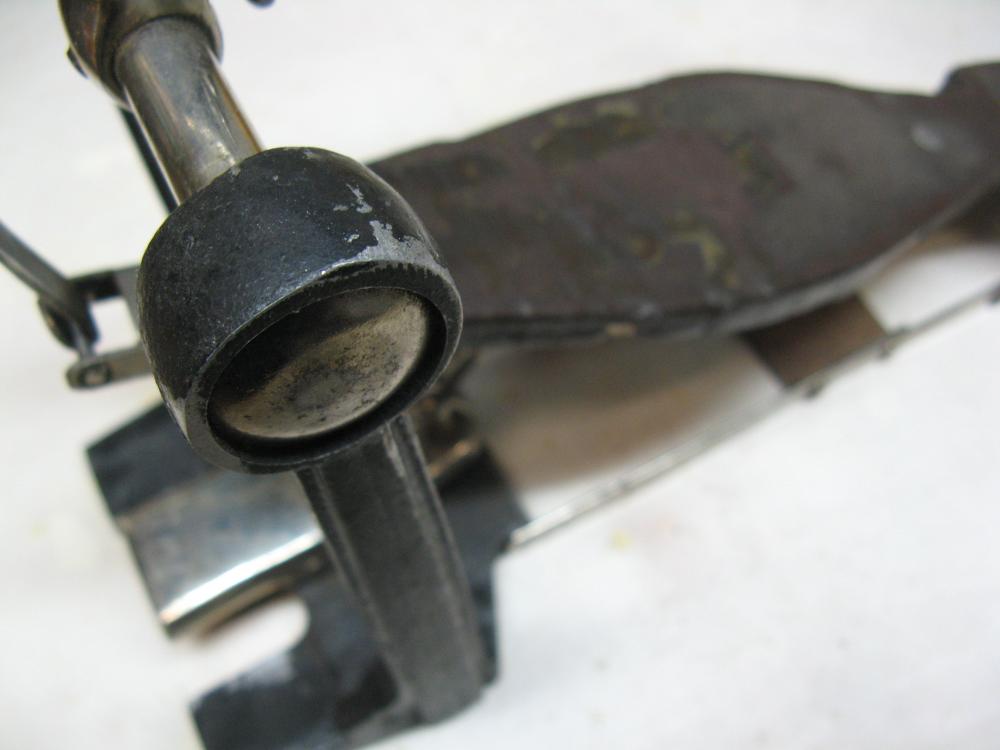

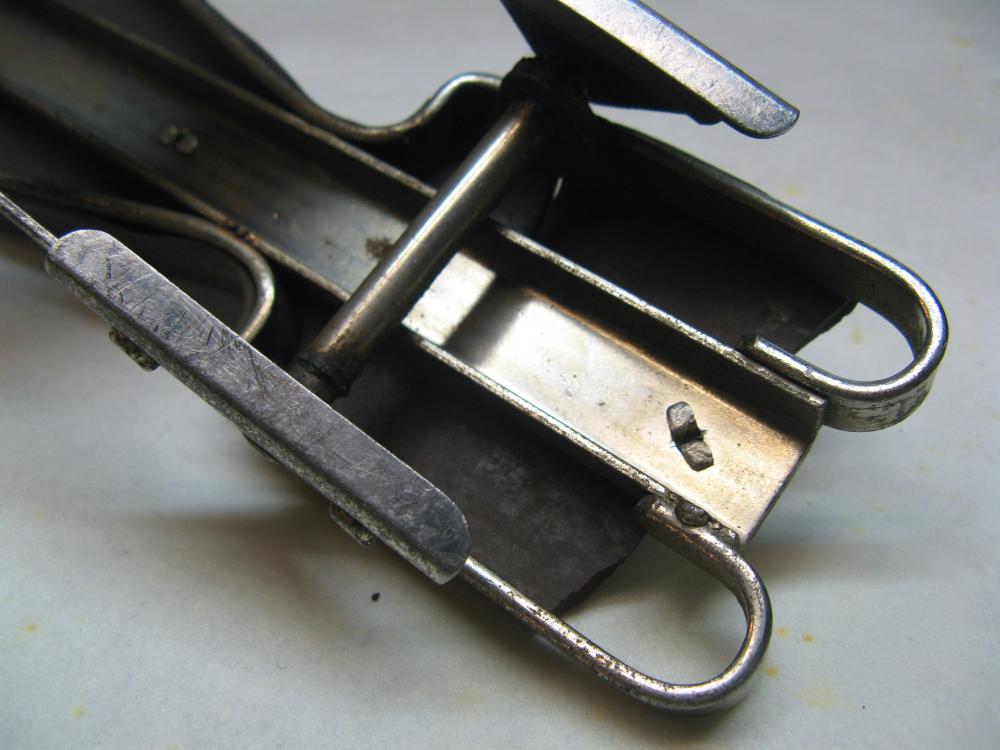

Oops....Having trouble uploading some of these. Hope this sheds light on this pedal and exactly what it is. The plastic footboard is not an aftermarket piece, made to be added later. Without it, there would be no complete footboard, as the frame is a bit "skeletal".

Posted on 10 years ago

#26

OddBall

Member

Joined 14 years ago

Posts: 6524 Threads: 37

From cooper

Go to post

I'll try that again....

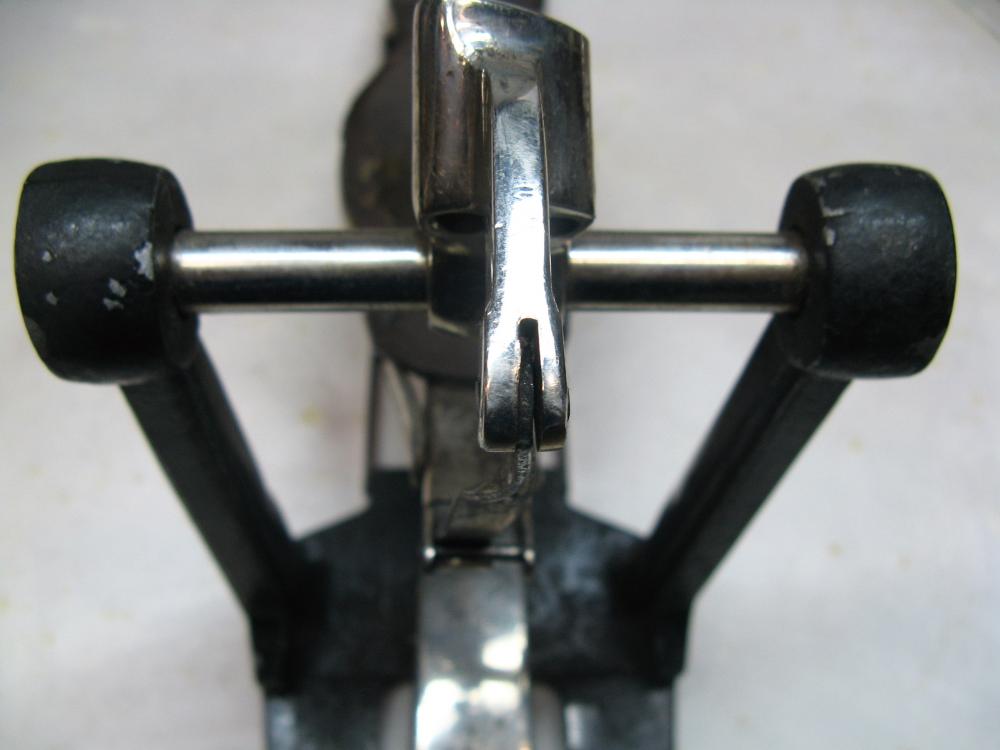

How is this possible ? Without touching the other wingnut ? Very strange...

The only WFL pedal that is cataloged with the twist on the linkage is the WFL Speedmaster that I could find anywhere.

http://www.vintagedrumguide.com/pedal_23.html

It`s a drum,.....Hit It !!

.....76/#XK9207 Phonic Sound Machine D454/D-505 snares !i

Posted on 10 years ago

#27

longjohn

Member

Joined 13 years ago

Posts: 3467 Threads: 116

Looks to me that it was designed for only one beater, but with a choice of two angle options...

Cheers

John

'77 Slingerland 51N,Super Rock 24,18,14,13.. COW 8,10 Concert toms
'69 Slingerland Hollywood Ace
'75 Rogers Dynasonic 6.5 x 14, 10 lug COB
'77-78 Slingerland 6.5 x 14, 10 lug COB
'78-79 Slingerland 5 1/4 x14 8 lug COB
'79 Biman 5 1/4, Acrolite
'82 Slingerland 5 1/4 x 14. Festival COS
'84 Tama MasterCraft Superstar 6.5 x 14, 10 lug Rosewood
'98 Slingerland (Music YO) 6" 10 Lug Maple.. NOS
Zildjian, Sabian , UFIP & Paiste mix.

Posted on 10 years ago

#28

OddBall

Member

Joined 14 years ago

Posts: 6524 Threads: 37

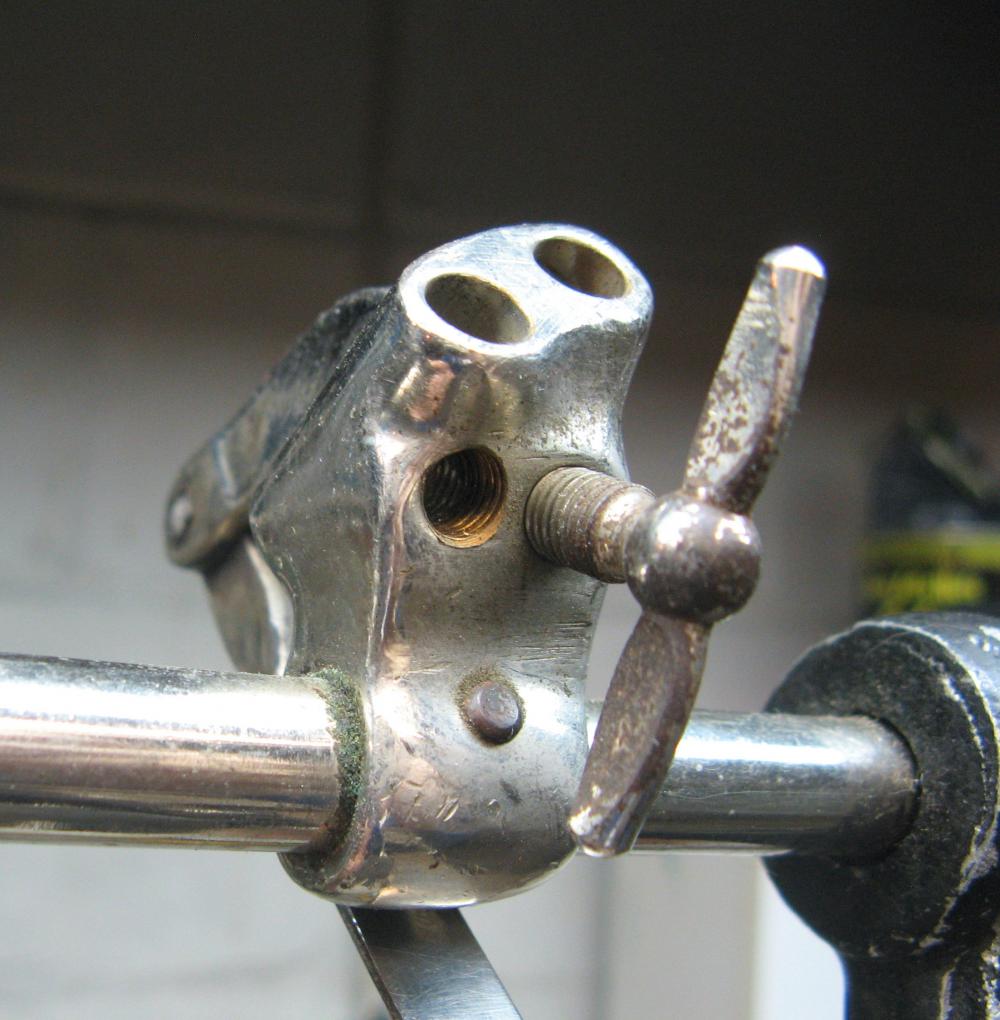

Looks like a P51 base. At the bottom of this link page you will see repair options to buy from WFL, that base you have there is shown as a P51, Also you will find your foot board listed as a P50. And...The knuckle with the two holes is listed as a P52.

Drumarchives wont let me save the page and show it here, almost at the bottom of the page;

Cooper, your whole pedal can be made from this repair option EXCEPT the board cover.

[ame]http://www.drumarchive.com/ludwig/1948_WFL.pdf[/ame]

It`s a drum,.....Hit It !!

.....76/#XK9207 Phonic Sound Machine D454/D-505 snares !i

Posted on 10 years ago

#29

OddBall

Member

Joined 14 years ago

Posts: 6524 Threads: 37

It`s a Speedmaster made from accessories.
